Description
1. Safety LED downlight and reliably LED driver (isolated, PF>0.95, overheat protection).
2.With intergrated structure design, the chip heat can be fully released, chip is made sure to work smooth and long life.
3.Totaaly watertight with IP65 rating that is ideal for bathroom, streamroom and shower room in residential and commercial environments.
4.Pollution free,no harmful elements such as lead or mercury.
5.The commercial downlight with high color rendering, uniform luminance, no light spot, no dark space.
LED chips Samsung(5630), Ediosn(2835) or Epistar(2835) option
LED chip type SMD 5630 or 2835
Input AC85-265V 50-60Hz
Power Type Isolated constant current power supply
PF Above 0.9 or 0.95
CCT 2800 to 6500K
CRI 80Ra above
Beam Angle 120 degree
Materials Die-casting aluminum
Cover PC frosted
Finish color Milk white
IP range IP65
Dimmable type Triac dimming
More details

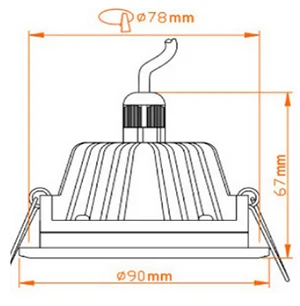

5W 7W 9W
Cut hole: 75mm-80mm
Round: dia90*H67mm
12W 15W
cut hole: 95mm
round: dia108*H50mm
18W 20W 24W
cut hole: 160-180mm
round: dia190*H70mm
Notes:
1. Make sure the power switch is OFF state before installing lamps and lanterns.
2. Use in the designated voltage range.
3. Please confirm disconnecting the power, before install, maintain, change the lamp and lanterns.
4. No matter what circumstance, lamps and lanterns can not be covering heat insulation pad or similar materials.

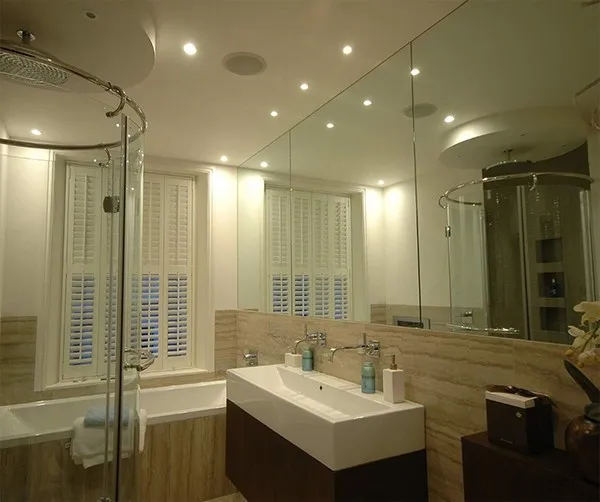

Appalication for wet location
The is a quality recessed wahtertight downlight which would be ideal in any modern bathroom,steamrooms,
wet locations in residential and commercial.
window.adminAccountId=201190071;
| Emitting Color | White, Warm White, Cold White |
|---|---|
| Wattage | 5w, 7w, 9w, 12w, 15w, 18W, 20W, 24W, 7W dimmable, 9W dimmable, 12W dimmable, 15W dimmable, 20W dimmable |
| Power Source | AC |
| Model Number | OW-JSDL65-7W |
| Voltage | 90-260V |
| Application | Bathroom |
| Material | Aluminum |
| Warranty | 2 years |
| Power Tolerance | 5% |
| Certification | ce |
| Brand Name | ourving |
| Finish | Powder-coating white |
| Power | 5W 7W 9W 12W 15W 18W 20W 24W |
| Beam angle | 120 degree |
