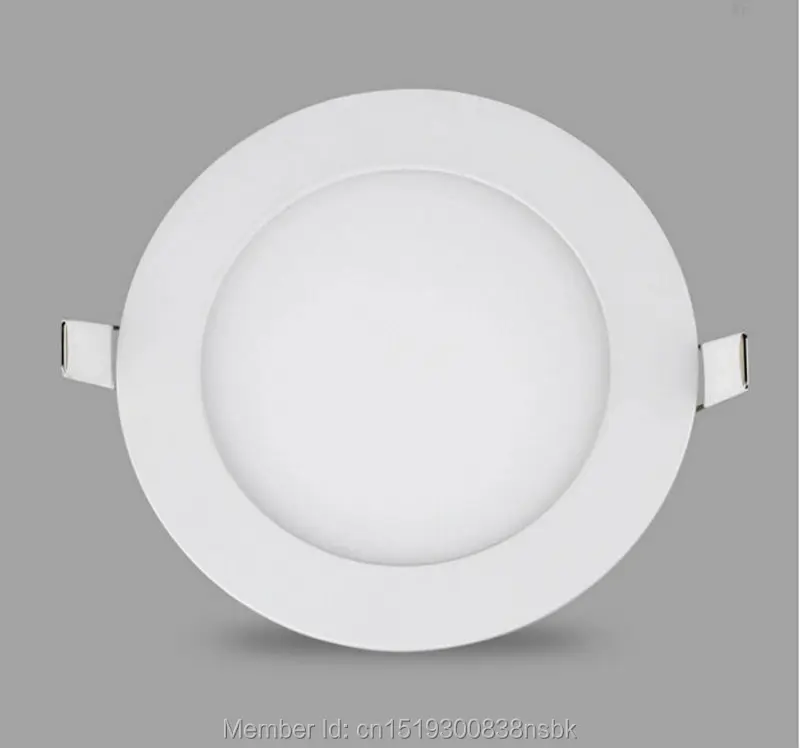

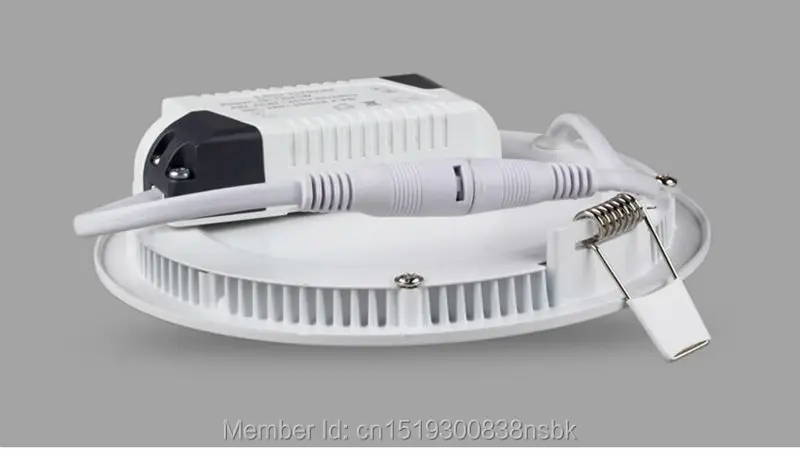

LED Panel Downlight
Specification: LED Downlight
Chip Brand: Epistar
3W Diameter: 85mm
3W Cutout Hole: 70mm
3W Luminous Flux: 270LM
4W Diameter: 105mm
4W Cutout Hole: 95mm
4W Luminous Flux: 360LM
6W Diameter: 120mm
6W Cutout Hole: 105mm
6W Luminous Flux: 540LM
9W Diameter: 145mm
9W Cutout Hole: 130mm
9W Luminous Flux: 810LM
12W Diameter: 175mm
12W Cutout Hole: 160mm
12W Luminous Flux: 1050LM
15W Diameter: 200mm
15W Cutout Hole: 185mm
15W Luminous Flux: 1350LM
18W Diameter: 225mm
18W Cutout Hole: 210mm
18W Luminous Flux: 1650LM
24W Diameter: 300mm
24W Cutout Hole: 285mm
24W Luminous Flux: 2100LM

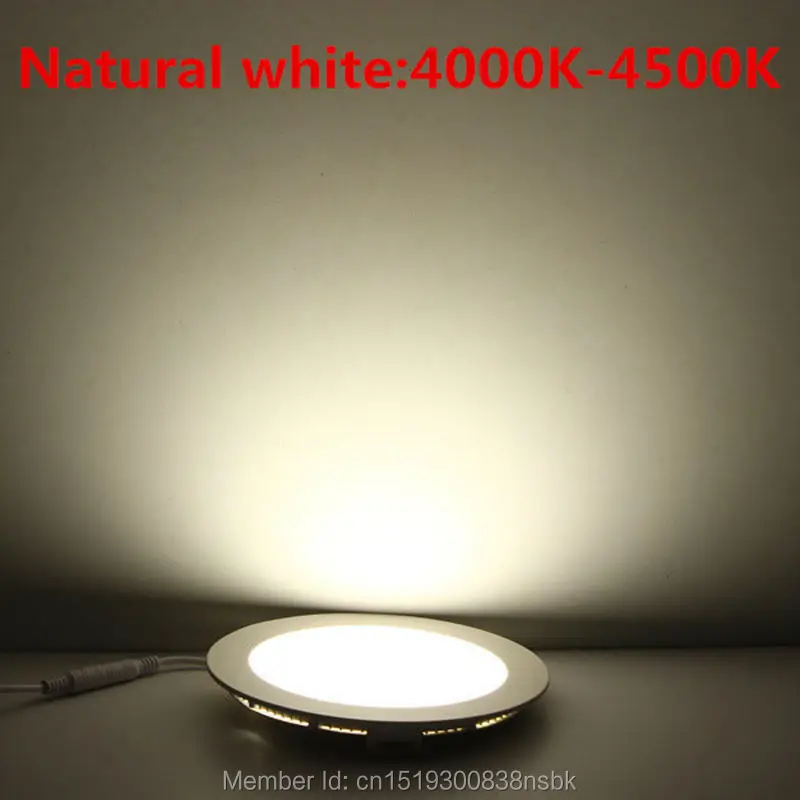

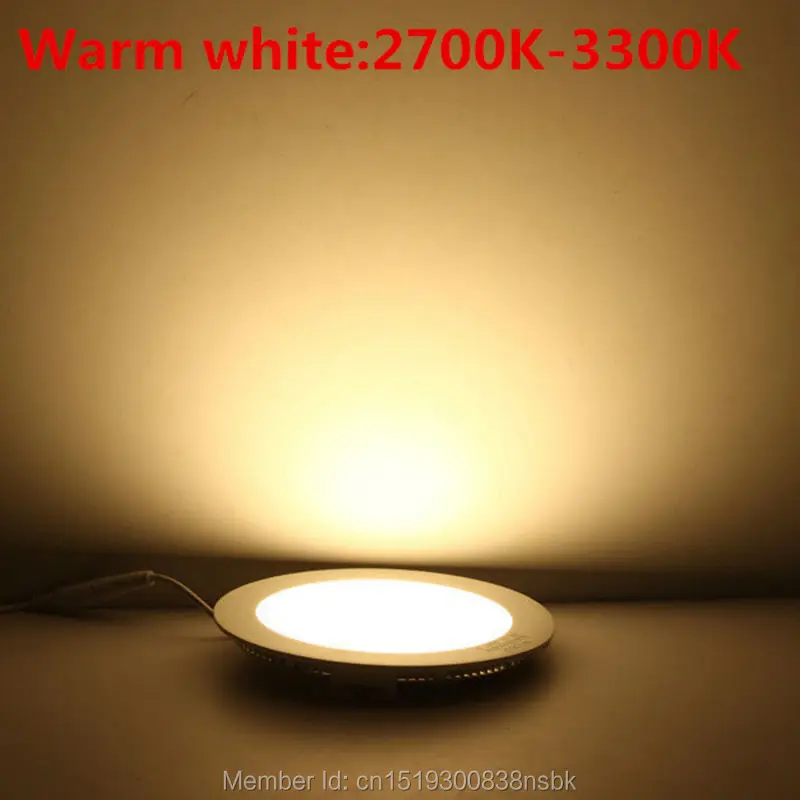

Color: White,Warm White
Input Voltage: 85-265V
Operating Temperature: -30 ~ 60 °C
Lifespan: 50000H
Certificate: CE and RoHS
Warranty: 3 Years
window.adminAccountId=229382413;
| Emitting Color | White, Warm White |
|---|---|
| Warranty | 3 Years |
| Certification | ce |
| Voltage | 90-260V |
| Application | Foyer |
| Is Dimmable | No |
| Model Number | PIN-DLWR |
| Material | Aluminum |
| Power Source | AC |
| Wattage | 3w, 4w, 6w, 9w, 12w, 15w, 18w, 24w |
| Energy Saving | 90% |
| Power Tolerance | 5% |
| CRI | 80Ra |
| Power Factor | 0.95 |
| PCB Material | Aluminum PCB |
| Cover Material | Acrylic |
| LED Source | SMD2835 |
| Lumen | 100-110LM/W |
| Housing Color | White |
| Product Name | LED Downlight |
